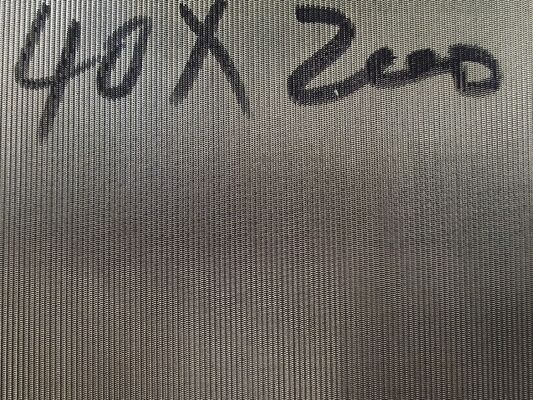

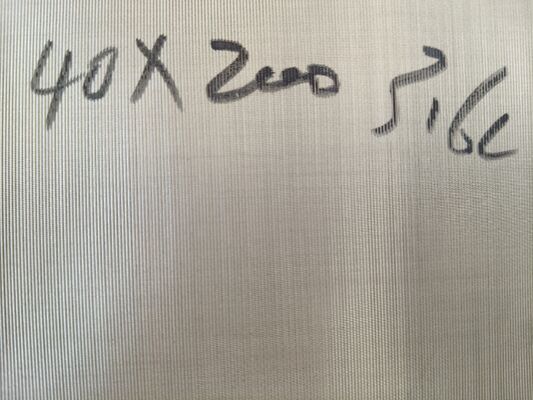

40×200 Mesh SS316L Dutch Weave Wire Mesh | Precision Filter Mesh for Liquid & Gas Filtration
제품 상세 정보
| 제품명 | 스테인레스 강 네덜란드 와이어 메쉬 | 재료 | 스테인레스 스틸 316L |
|---|---|---|---|
| 메쉬 카운트 | 40x200 | 너비 | 1.2m, 1.5m 또는 맞춤형 |
| 길이 | 30m 또는 사용자 정의 | 기술 | 짠 |
| 색상 | 브라이트 실버 | 특징 | 역세나 초음파 세척을 통해 메쉬를 세척할 수 있어 수명이 크게 연장됩니다. |
| 애플리케이션 | 화학 및 석유화학: 촉매 회수, 용매 여과, 폴리머 처리 | 기원 | 중국 |
| 강조하다 | SS316L Dutch weave wire mesh,Stainless steel precision filter mesh,40x200 mesh gas filtration screen |
||
제품 설명
40×200 Mesh SS316L Dutch Weave Wire Mesh | Precision Filter Mesh for Liquid & Gas Filtration
Product Introduction
This 40×200 mesh SS316L Dutch Weave Wire Mesh is a precision-engineered filter media designed for high-efficiency solid-liquid separation. Using the classic Dutch weave structure, it combines high mechanical strength with micron-level filtration accuracy, making it ideal for critical industrial applications.
Product Specifications
| Parameter | Details |
|---|---|
| Material | SS316L (Low Carbon Stainless Steel) |
| Weave Type | Dutch Twill Weave / Dutch Weave |
| Mesh Count | 40×200 mesh (warp × weft) |
| Filtration Rating | 5–10 μm |
| Typical Width | 1000mm / 1200mm / Custom |
| Roll Length | 30m / 50m / Custom |
| Features | Corrosion-resistant, high strength, cleanable & reusable |
Product Features
Precision Filtration: The dense weft structure delivers consistent micron-level filtration, preventing fine particle bypass.
Superior Corrosion Resistance: SS316L material offers excellent resistance to acids, alkalis, chlorides, and seawater, suitable for harsh environments.
High Pressure Resistance: Robust warp wires and dense weave structure withstand high differential pressures without deformation.
Reusable & Cost-Effective: The mesh can be cleaned by backwashing or ultrasonic cleaning, significantly extending service life.
Full Compliance: Suitable for food-grade, pharmaceutical, and chemical industry requirements.
Application
Food & Beverage: Syrup clarification, edible oil filtration, beer/wine processing
Chemical & Petrochemical: Catalyst recovery, solvent filtration, polymer processing
Pharmaceutical: Liquid medicine filtration, sterile air purification
Water Treatment: Seawater desalination, reverse osmosis pre-filtration
Industrial Filtration: Hydraulic oil purification, gas separation, filter cartridges/sleeves
Our Service:
Custom cutting & slitting to your required size
OEM/ODM support for filter elements and assemblies
Fast delivery & competitive factory pricing
Free samples available for testing
Key words
40x200 mesh dutch weave wire mesh, SS316L filter mesh, stainless steel dutch weave screen, precision liquid filter mesh, 5-10 micron filter screen, food grade stainless steel wire mesh, 316L dutch twill weave mesh, industrial filter wire mesh
| Mesh Counts | Wire Diameter | Aperture Size | Weight | Thickness |
| warp×weft | warp×weft | (μm) | (kg/㎡) | (mm) |
| (Mesh/Inch) | (mm) | |||
| 12×64 | 0.56×0.4 | 211 | 3.89 | 1.36 |
| 20×170 | 0.25×0.16 | 130 | 1.56 | 0.57 |
| 20×110 | 0.355×0.25 | 126 | 2.47 | 0.855 |
| 22×120 | 0.315×0.224 | 115 | 2.2 | 0.763 |
| 25×140 | 0.28×0.2 | 100 | 1.96 | 0.68 |
| 24×110 | 0.355×0.25 | 97 | 2.6 | 0.855 |
| 28×150 | 0.28×0.18 | 92 | 1.87 | 0.64 |
| 30×150 | 0.25×0.18 | 82 | 1.79 | 0.61 |
| 30×140 | 0.315×0.20 | 77 | 2.21 | 0.715 |
| 35×190 | 0.224×0.14 | 74 | 1.47 | 0.504 |
| 35×170 | 0.224×0.16 | 69 | 1.62 | 0.544 |
| 40×200 | 0.18×0.135 | 63 | 1.24 | 0.43 |
| 45×250 | 0.16×0.11 | 56 | 1.11 | 0.384 |
| 50×300 | 0.16×0.09 | 55 | 0.98 | 0.34 |
| 60×500 | 0.14×0.055 | 51 | 0.7 | 0.252 |
| 50×270 | 0.14×0.10 | 50 | 0.98 | 0.34 |
| 70×930 | 0.10×0.03 | 30 | 0.39 | 0.16 |
| 65×390 | 0.125×0.071 | 42 | 0.78 | 0.267 |
| 60×300 | 0.14×0.09 | 41 | 0.96 | 0.32 |
| 80×700 | 0.125×0.04 | 40 | 0.6 | 0.205 |
| 60×270 | 0.14×0.1 | 39 | 1.03 | 0.34 |
| 77×560 | 0.14×0.05 | 38 | 0.74 | 0.24 |
| 80×600 | 0.1×0.045 | 37 | 0.53 | 0.19 |
| 70×390 | 0.112×0.071 | 0.74 | 0.254 | |
| 65×750 | 0.10×0.036 | 36 | 0.43 | 0.172 |
| 70×340 | 0.125×0.08 | 35 | 0.86 | 0.285 |
| 80×430 | 0.125×0.063 | 32 | 0.77 | 0.251 |
| 100×1200 | 0.063×0.023 | 23 | 0.27 | 0.109 |
| 118×750 | 0.063×0.036 | 0.38 | 0.135 | |
| 130×1100 | 0.071×0.05 | 17 | 9.4 | 0.171 |
| 130×1200 | 0.071×0.045 | 18 | 12 | 0.161 |
| 130×1500 | 0.063×0.036 | 21 | 18.6 | 0.135 |
| 150×1400 | 0.063×0.04 | 15 | 11.4 | 0.143 |
| 160×1500 | 0.063×0.036 | 15 | 12.4 | 0.135 |
| 165×1500 | 0.063×0.036 | 14 | 11.4 | 0.135 |
| 174×1400 | 0.063×0.04 | 11 | 7.4 | 0.143 |
| 174×1700 | 0.063×0.032 | 13 | 12.9 | 0.127 |
| 203×1600 | 0.05×0.032 | 10 | 9.3 | 0.114 |
| 216×1800 | 0.045×0.03 | - | 9 | 0.105 |
| 250×1600 | 0.05×0.032 | - | 4 | - |
| 250×1900 | 0.04×0.028 | 8 | 8 | - |
| 285×2100 | 0.036×0.025 | 7 | 7.2 | - |
| 300×2100 | 0.036×0.025 | 6 | 6 | - |
| 317×2100 | 0.036×0.025 | 5 | 5 | - |
| 325×2300 | 0.036×0.024 | 4 | 4 | - |
| Note: Absolute filter values above should be taken as just rough estimations. | ||||
It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
