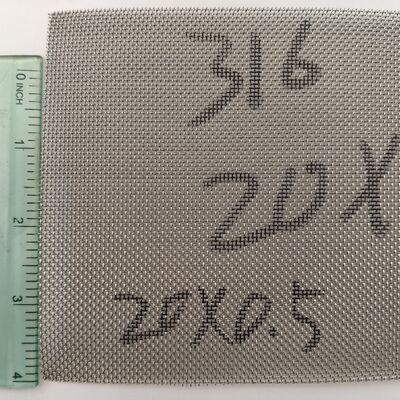

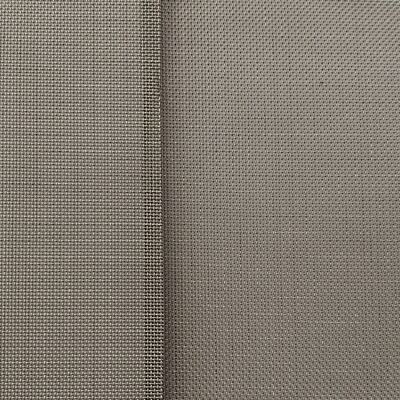

20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy

  • 20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy
  • 20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy
  • 20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy
원래 장소 헨슈이, 중국
브랜드 이름 QIANPU
최소 주문 수량 1롤
가격 Negotiable according to quantity of order
포장 세부 사항 1. support+wire 메쉬 layer+water를 위한 사용 통 파이프 안에서 교정용지 2.는 바깥에서 플라스틱 나무로 된 bags+wooden 사례 / 통 파이프 / 목
배달 시간 2 주
공급 능력 한 달에 3000 롤
제품 상세 정보
제품명 스테인레스 강 네덜란드 와이어 메쉬 재료 스테인레스 스틸 316
메쉬 카운트 20x20 너비 1.2m, 1.5m 또는 맞춤형
길이 30m 또는 사용자 정의 기술 짠
색상 브라이트 실버 와이어 직경 0.50mm x 0.50mm
특징 여과 안정적인 스크리닝 및 여과 정확도 애플리케이션 여과법
강조하다

20Mesh stainless steel wire mesh

,

SS316 plain weave wire mesh

,

0.50mm filtration wire mesh
메시지를 남겨주세요
제품 설명

20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy



Product Introduction



1. Basic Parameters


  • Mesh: 20 Mesh (20 openings per linear inch)
  • Wire Diameter: 0.5 mm
  • Material: SS316 (AISI 316 / 1.4401) stainless steel
  • Weave Type: Plain Weave
  • Nominal Aperture: Approx. 0.77 mm
  • Open Area: Approx. 36.8%


2. Material Performance


  • Excellent corrosion resistance: Superior to 304, with strong resistance to chloride, seawater, acid, alkali and chemical corrosion.
  • High temperature & oxidation resistance: Stable performance in high-temperature and harsh environments.
  • Hygienic & non-toxic: Suitable for food, pharmaceutical, seawater treatment and sanitary working conditions.
  • High strength & durability: Good rigidity, wear resistance, long service life, not easy to deform.


3. Product Features


  • Uniform square mesh openings, stable screening and filtration accuracy.
  • Thick wire diameter ensures high tensile strength and impact resistance.
  • Smooth surface, not easy to hang material, easy to clean and reuse.
  • Good structural stability, firm weaving, not easy to loose or damage.
  • Can be cut, punched, welded and deep processed into various mesh parts.


4. Typical Applications


  • Filtration & separation: Coarse filtration of industrial liquids, oils, chemical solutions, sewage treatment.
  • Screening & grading: Granular materials, plastic pellets, food particles, powder classification.
  • Marine & coastal facilities: Seawater filtration, marine equipment protective mesh, coastal ventilation mesh.
  • Industrial protection: Safety guard mesh, particle isolation, exhaust gas pretreatment filtration.
  • Machinery & equipment: Plastic extruder screens, filter discs, protective covers.


5. Product Advantage


This 20Mesh 0.5mm 316 plain weave wire mesh combines moderate opening size with strong structural strength and excellent corrosion resistance, making it widely used in industrial screening, coarse filtration and harsh environment protection, especially suitable for occasions requiring both strength and corrosion resistance.





20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy 0



Plain Weave

Mesh Wire D Aperture L Open
openings/inch mm inch mm inch %
3 1.60 0.0629 6.866 0.2703 65.77
3 0.70 0.0275 7.766 0.3057 84.14
4 1.20 0.0472 5.15 0.2027 65.77
4 0.60 0.0236 5.75 0.2263 81.99
5 1.00 0.0393 4.08 0.1606 64.50
5 0.50 0.0196 4.58 0.1803 81.28
6 0.90 0.0354 3.333 0.1312 62.00
6 0.50 0.0196 3.733 0.1469 77.77
8 0.90 0.0354 2.275 0.0895 51.34
8 0.50 0.0196 2675 0.1053 70.98
10 0.90 0.0354 1.640 0.0645 41.68
12 0.80 0.0314 1.316 0.0518 38.69
14 0.70 0.0275 1.114 0.0438 37.72
16 0.60 0.0236 0.987 0.0388 38.69
18 0.50 0.0196 0.911 0.0358 41.68
20 0.50 0.0196 0.770 0.0303 36.75
30 0.35 0.0137 0.496 0.0195 34.41
40 0.30 0.0118 0.335 0.0131 27.83
50 0.25 0.0098 0.258 0.0101 25.79
60 0.23 0.0090 0.193 0.0076 20.85
80 0.13 0.0051 0.187 0.0073 34.87
100 0.10 0.0039 0.154 0.0060 36.75
100 0.08 0.0031 0.174 0.0068 46.92
120 0.09 0.0035 0.121 0.0047 33.03
120 0.08 0.0031 0.131 0.0051 38.69
120 0.07 0.0027 0.141 0.0055 44.79
120 0.06 0.0023 0.151 0.0059 51.34
120 0.05 0.0019 0.161 0.0063 58.33
150 0.06 0.0023 0.109 0.0043 41.68
150 0.065 0.0025 0.104 0.0041 37.96
165 0.063 0.0024 0.090 0.0035 34.89
165 0.06 0.0023 0.093 0.0036 37.23
165 0.05 0.0019 0.103 0.0040 45.58
180 0.05 0.0019 0.091 0.0035 41.68
200 0.05 0.0019 0.077 0.0030 36.75
200 0.04 0.0015 0.087 0.0034 46.93
250 0.04 0.0015 0.061 0.0024 36.75
300 0.04 0.0015 0.044 0.0017 27.83



It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.



In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
