Stainless Steel Woven Wire Mesh with 14Mesh
제품 상세 정보
| 재료 | 스테인레스 스틸 | 크기 | 1mx30m |
|---|---|---|---|
| 메쉬 번호 | 14메쉬 |
제품 설명

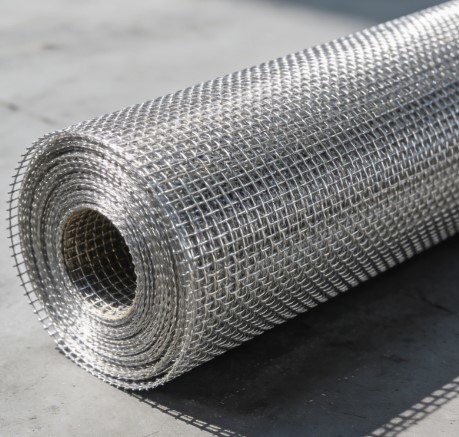

Stainless Steel Woven Wire Mesh with 14Mesh
Engineered for enhanced particle retention, our 14 Mesh Stainless Steel Woven Mesh provides a finer screening solution compared to coarser meshes. It is manufactured with a precise over-and-under weave pattern using corrosion-resistant stainless steel wires, resulting in a stable and reliable screen. This mesh offers a solid combination of open area for good flow and increased mesh count for capturing smaller particles, making it a versatile choice for medium-duty filtration and separation applications.
Primary Uses and Applications
- Aggregate & Sand Sizing: Commonly used in the aggregate industry for sizing sand, gravel, and crushed stone.
- Pulp & Paper Processing: Functions as a screen or deck in pulp screening and paper mill applications.
- Plastic & Pellet Separation: Effective in sorting and removing fines from plastic pellets and resin materials.
- Industrial Sifting: Employed in various sifting operations for food processing, pharmaceuticals, and chemical powders.
- Insect Screening: Can serve as a heavy-duty insect screen for industrial or agricultural ventilation.
Specifications
| Mesh Count | 14 mesh per linear inch (both warp and weft) |
|---|---|
| Wire Diameter | Typically 0.023" (0.58mm) or 0.020" (0.51mm) |
| Opening Size | Approximately 0.071" (1.80mm) with a standard 0.023" wire |
| Weave Type | Plain Square Weave |
| Material | 304, 316 Stainless Steel, and other alloys upon request |
| Width & Length | Available in standard rolls or custom-cut dimensions |
