Stainless Steel Woven Wire Mesh with 8Mesh
제품 상세 정보
| 재료 | 스테인레스 스틸 | 크기 | 1mx30m |
|---|---|---|---|
| 메쉬 번호 | 8mesh |
제품 설명

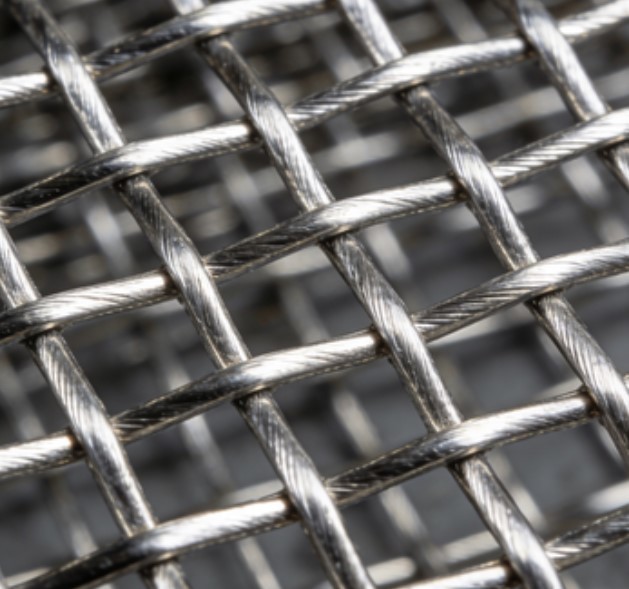

Stainless Steel Woven Wire Mesh with 8Mesh
Product Overview
8 mesh stainless steel woven wire mesh is a high-performance, multi-purpose product designed for accurate screening, filtration, and separation tasks across diverse industries. Manufactured from premium 304, 316, or 316L stainless steel, it boasts outstanding corrosion resistance, tensile strength, and structural stability, suitable for both dry and wet environments.
Technical Specifications
| Specification | Details |
|---|---|
| Mesh Count | 8 openings per linear inch |
| Aperture Size | Approximately 2.6mm (adjustable based on wire diameter) |
| Wire Diameter Range | 0.4mm - 1.0mm (customizable for strength/filtration needs) |
| Standard Dimensions | 1m × 30m | Custom-cut sizes available |
| Weave Type | Plain weave (uniform aperture, easy cleaning) / Twill weave (higher load-bearing capacity) |
Material Grades
304 Grade: Cost-effective, food-safe, ideal for general industrial & agricultural use
316/316L Grade: Enhanced resistance to saltwater, acids, and chemicals (marine/chemical processing)
Core Benefits
- Accurate Screening: Consistent mesh openings ensure precise particle classification, reducing material waste
- Long Service Life: Resists rust, oxidation, and wear, eliminating frequent replacement costs
- Versatile Machinability: Can be cut, bent, welded, or punched to create custom components (filter discs, protective covers)
- Food-Grade Compliance: 304 grade meets FDA standards, suitable for food processing and pharmaceutical filtration
Typical Applications
- Aggregate & mineral grading in construction and mining
- Liquid/solid separation in water treatment, oil purification, and beverage production
- Protective guards for machinery, ventilation systems, and security fencing
- Agricultural seed sorting, aquaculture netting, and livestock fencing
- Architectural decoration (facade panels, interior dividers)
