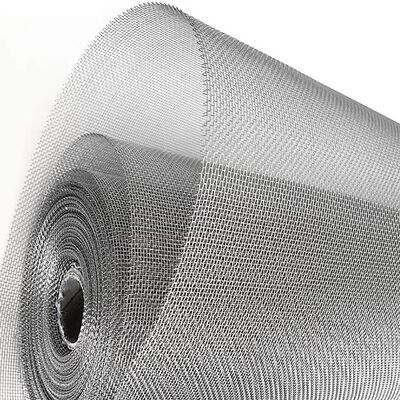

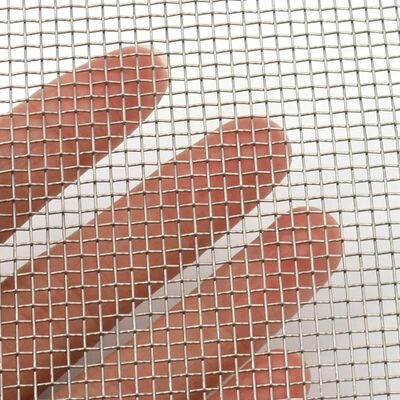

Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing
제품 상세 정보
| 재료 | SS304, SS304L, SS316, SS316L | 직조 유형 | 평직 / 능직 / 더치 직조 |
|---|---|---|---|
| 와이어 직경 | 0.15mm – 2.0mm | 메쉬 카운트 | 2 – 400 메시 |
| 개구부 크기 | 0.038mm – 10mm | 표면 처리 | 광휘 소둔 / 산세 패시베이션 |
| 표준 크기 | 1m×30m 롤(맞춤형) | 애플리케이션 | 식품 및 음료 여과, 의약품 체질, 산업용 필터, 건설 펜싱, 보안 창문 보호대 |
| 강조하다 | food grade stainless steel wire mesh,304/316 stainless steel filtration mesh,woven wire mesh for fencing |
||
제품 설명
Plain Dutch Weave has a specialized structure with larger warp wires than weft wires. It is woven by interlacing a few warp wires with tightly packed weft wires, forming a dense mesh with invisible apertures. Its plain pattern ensures even wire distribution, resulting in a smooth, easy-to-clean surface.
Twill Dutch Weave has an upgraded structure, also with larger warp wires than weft wires. Tightly packed weft wires are woven in a twill pattern (each weft passes over two warp wires and under one, or vice versa), creating a dense mesh with subtle diagonal textures, enhanced rigidity and wear resistance.
- *Material*: SS304 / SS304L / SS316 / SS316L
- *Weaving Type*: Plain Weave / Twill Weave / Dutch Weave
- *Weaving Type*: Plain Weave / Twill Weave / Dutch Weave
Main Applications
Our stainless steel woven wire mesh is widely used in:
- *Food & Beverage*: Bakery equipment, beverage filtration, food processing machinery
- *Pharmaceutical*: Medicine sieving, clean room filtration, pharmaceutical machinery components
- *Construction*: Concrete reinforcement, building facades, security window guards
- *Industrial & Security*: Machine guards, liquid filtration, mine sieving, pet enclosures

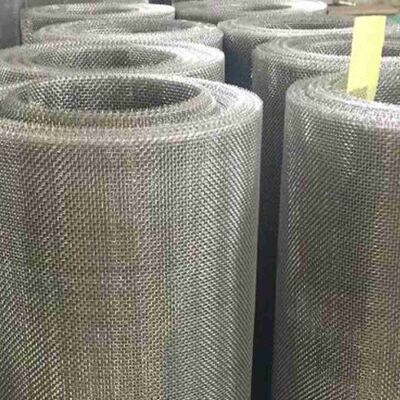

Packing:
In rolls, wrapped with waterproof paper then covered with hessian cloth. Special packing may be arranged if necessary.
