Plain Weave Stainless Steel Filter Wire Mesh Customized For Gas / Liquid Filtering
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 재료 | 스테인리스 스틸 와이어 AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L | 유형 | 와이어 메쉬 직조 |
|---|---|---|---|
| 직조 스타일 | 평범한 직조 | 와이어 직경 | 0.025mm-2mm, 0.025mm-10mm |
| 용법 | 여과기 스트레이너 데미터 패드 | 너비 | 0.5-2m |
| 길이 | 사용자 정의 | 특징 | 부식 저항 |
| 애플리케이션 | 공기 및 액체 여과 | 구멍 모양 | 불규칙한 |
| 강조하다 | stainless steel filter wire mesh,customized gas liquid filter mesh,plain weave stainless steel mesh |
||
제품 설명
Plain Weave Stainless Steel Filter Wire Mesh Customized For Gas / Liquid Filtering
Product Specifications
| Attribute | Value |
|---|---|
| Material | stainless steel wire AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L |
| Type | Weave wire mesh |
| Weave style | Plain weave |
| Wire Diameter | 0.025mm-2mm, 0.025mm-10mm |
| Usage | Filter strainers demister pad |
| Width | 0.5-2m |
| Length | Customized |
| Feature | Corrosion Resistance |
| Application | Air & Liquid Filtration |
| Hole shape | irregular |
Product Description

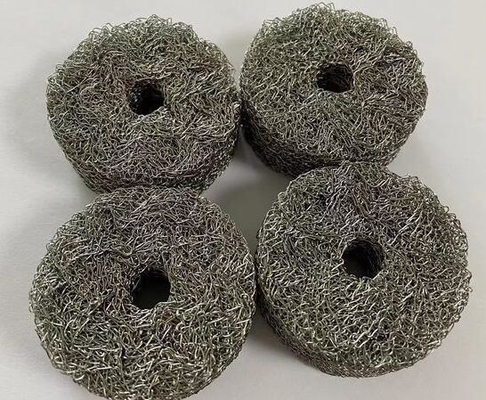

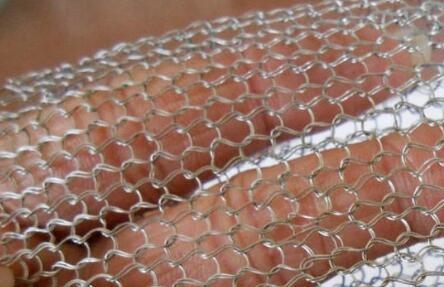

Knitted Wire Mesh for Gas and Liquid Filtering (Stainless Steel, Galvanized, Plastic, Stainless Knitted Wire Mesh)
- Material: stainless steel wire (AISI201,202,301,304,304L,321,316,316L,etc), galvanized wire, red copper wire, nickel wire, PEFT, terylene wire, polythylene wire, etc.
- Wire scope: 0.1-0.55mm (common wire is 0.2-0.25mm), wire can be single and multi-strand; round and flat.
- Hole size: mesh can be from 2×3mm, 4×5mm to 12×6mm, other sizes as customers' demands.
- Surface treatment for filter: Flat and crimped, if wavy should provide crimped width and depth.
- Filter mesh width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500mm, 600mm.
- Filter mesh length: 30m, 50m, 100m, others as customers' demands.
Applications
- Used to make demister mesh
- As screens/disc for gas-liquid separation, gas water separation, water-oil separation
- All kinds of filter elements used on engines for cars, tractors
- Used on other electronic and electrical products
Technical Specifications
| Type | Mesh quantity and Width | Wire diameter (MM) | Material | Weight (kgs/sqm) |
|---|---|---|---|---|
| Standard | 40-100 | 0.1X0.4 | 1Cr18Ni9 | 1/0.5 |
| Standard | 60-180 | 0.1X0.4 | 1Cr18Ni9 | 1/0.5 |
| Standard | 140-400 | 0.1X0.4 | 1Cr18Ni9 | 1/0.5 |
| Standard | 40-100 | 0.27 | Gal. Lead wire | 1/0.7 |
| Standard | 40-100 | 0.1X0.4 | Copper wire | 1/0.7 |
| Standard | 40-100 | 0.25 | polyamide fibre | 1/0.7 |
| Standard | 40-100 | 0.2 | polyethylene wire | 1/0.7 |
| Standard | 40-100 | 0.2 | Polypropylene wire | 1/0.7 |
| Efficient type1 | 60-100 | 0.15 | Polypropylene wire | 1/0.7 |
| Efficient type1 | 70-100 | 0.1X0.3 | Stainless steel wire | 1/0.6 |
| Efficient type1 | 80-100 | 0.1X0.3 | Stainless steel wire | 1/0.6 |
| Efficient type1 | 90-150 | 0.1X0.3 | Stainless steel wire | 1/0.6 |
| Efficient type1 | 200-400 | 0.1X0.3 | Stainless steel wire | 1/0.6 |
| Efficient type1 | 60-100 | 0.1X0.5 | polyamide fibre | 1/0.6 |
| Efficient type1 | 80-100 | 0.1X0.5 | polyamide fibre | 1/0.6 |
| Efficient type2 | 20-160 | 0.1X0.4 | Stainless steel wire | 1/0.4 |
| Efficient type2 | 30-150 | 0.1X0.4 | Stainless steel wire | 1/0.4 |
| Efficient type2 | 70-400 | 0.1X0.4 | Stainless steel wire | 1/0.4 |
We can weave the special size for you according to your requirements
Key Features
- High filtration efficiency
- High strength and firm structure
- High temperature resistance
- Corrosion and rust resistance
- Acid and alkali resistance
- Will not scratch or mar
- Wide range of application
- Long service life
Qualified products, competitive prices, timely delivery, considerate service, etc.
