Corrosion Resistant Compressed Knitted Wire Mesh Tube Irregular Hole Customized Length
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 재료 | 스테인리스 스틸 와이어 AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L | 유형 | 와이어 메쉬 직조 |
|---|---|---|---|
| 직조 스타일 | 평범한 직조 | 와이어 직경 | 0.025mm-2mm, 0.025mm-10mm |
| 용법 | 여과기 스트레이너 데미터 패드 | 너비 | 0.5-2m |
| 길이 | 사용자 정의 | 특징 | 부식 저항 |
| 애플리케이션 | 공기 및 액체 여과 | 구멍 모양 | 불규칙한 |
| 강조하다 | corrosion resistant knitted wire mesh tube,custom length stainless steel mesh,irregular hole compressed wire mesh |
||
제품 설명

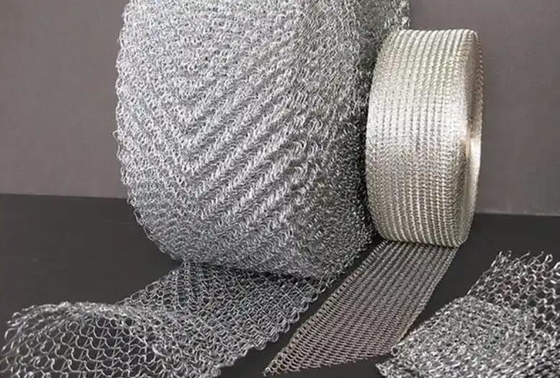

Corrosion Resistant Compressed Knitted Wire Mesh Tube Irregular Hole Customized Length
Product Specifications
| Attribute | Value |
|---|---|
| Material | stainless steel wire AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L |
| Type | Weave wire mesh |
| Weave style | Plain weave |
| Wire Diameter | 0.025mm-2mm, 0.025mm-10mm |
| Usage | Filter strainers demister pad |
| Width | 0.5-2m |
| Length | Customized |
| Feature | Corrosion Resistance |
| Application | Air & Liquid Filtration |
| Hole shape | irregular |
Product Description
Knitted Stainless Steel Wire Mesh Tube, Gas-Liquid Filter Wire Mesh, Stainless Steel Copper Knitted Wire Mesh
Detailed Specifications
| Material | S.S.201, 202, 301, 302, 304, 316, 316L Inconel 600 and 601 Monel 400 Brass wire/copper wire PP/PE wire |
|---|---|
| Diameter | 0.12 - 0.3mm |
| Width | 100mm, 150mm, 300mm, 400mm, 500mm, 520mm, 560mm |
| Mesh opening | 2*4mm, 4*5mm, 12*6mm |
Key Features
- Service Temperature up to 2000°F
- Corrosive Resistant
- Extremely Durable
- Available and Economical
Primary Applications
Filtering, Screening
Knitted Wire Mesh Advantages
The interlocking-loop construction provides exceptional resiliency. When compressed, stretched or bent (within material limits), the mesh springs back to its original form. This property is maintained even in compressed elements, allowing them to conform to specific shapes while responding to in-use loads.
Knitted Wire Mesh Applications
- Insulation or hot side support material for extreme temperatures or corrosive environments
- Insulation or filtration alternative to steel wool where loose fibers are a concern
- Oil Mist Separation, Mist Eliminators or Demister pads for various industries
- Sound Attenuation filter in pneumatic tools and vacuum systems
- Cryogenic gaskets, seals & discs; Automotive exhaust components
- Pre-filter for coarse dust in HVAC systems; Gas turbine and compressed air filters
- Engine exhaust muffler packing; EMI/RFI Shielding
