Irregular Hole Stainless Steel Knitted Wire Mesh Heat Shield Isolators / Vibration Dampeners
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 재료 | 스테인리스 스틸 와이어 AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L | 유형 | 와이어 메쉬 직조 |
|---|---|---|---|
| 직조 스타일 | 평범한 직조 | 와이어 직경 | 0.025mm-2mm, 0.025mm-10mm |
| 용법 | 여과기 스트레이너 데미터 패드 | 너비 | 0.5-2m |
| 길이 | 사용자 정의 | 특징 | 부식 저항 |
| 애플리케이션 | 공기 및 액체 여과 | 구멍 모양 | 불규칙한 |
| 강조하다 | stainless steel knitted wire mesh,heat shield vibration dampeners,irregular hole wire mesh isolators |
||
제품 설명

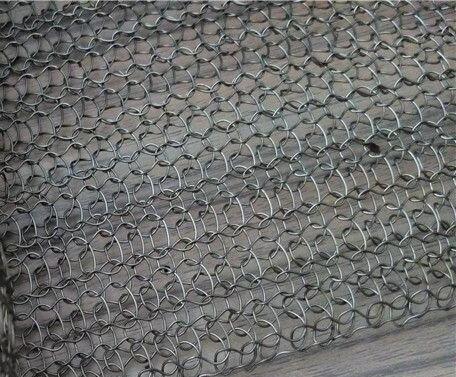

Irregular Hole Stainless Steel Knitted Wire Mesh Heat Shield Isolators / Vibration Dampeners
Product Specifications
| Attribute | Value |
|---|---|
| Material | stainless steel wire AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L |
| Type | Weave wire mesh |
| Weave style | Plain weave |
| Wire Diameter | 0.025mm-2mm, 0.025mm-10mm |
| Usage | Filter strainers demister pad |
| Width | 0.5-2m |
| Length | Customized |
| Feature | Corrosion Resistance |
| Application | Air & Liquid Filtration |
| Hole shape | irregular |
Product Description
Knitted Wire Mesh as Heat Shield Isolators & Vibration Dampeners, Stainless Steel Knitted Mesh Compressed Cylinders
Compressed Knitted Wire Mesh Features
- High strength and integral rigidity
- Good air penetrability
- Easy to assemble and replace
- Durable and long service life
- Easy to clean and maintenance
- Excellent filter precision and impedance
- Abrasion resistance and corrosion resistance
- High and low temperature resistance
- Can be used combined with expanded metal or woven wire mesh for better filtering performance
Compressed Knitted Mesh Filter Specifications
Filter Specification 1:
- Material: Stainless steel 304
- Diameter: 6 mm
- Thickness: 4 mm
- Nominal filtration level: 100 - 150 Micron
- Porosity: 50%
- Temperature: -40 to +120°C
- Fluid to be filtered: hydraulic oil
Filter Specification 2:
- Material: Stainless steel 304L
- Diameter: 10 mm
- Thickness: 3 mm
- Nominal filtration level: 60 Micron
- Temperature: -40 to +120°C
- Fluid: a.a.
Filter Specification 3:
- Material: Stainless steel 304
- Diameter: 6.5 mm
- Thickness: 2.5 mm
- Nominal filtration level: 100 - 150 Micron
- Porosity: 50%
- Temperature: -40 to +120°C
Knitted Wire Mesh Advantages
Aside from its various finished forms, the biggest advantage of knitted wire mesh is its construction. As mentioned, knitting produces an interlocking-loop pattern. In this configuration, each loop is integrated with its neighbors as each supports the other. When a mesh or mesh element is compressed, stretched or bent, and provided that exertion is not past the material's yield point, the interlocking-loop construction allows the element to spring back to its original form. This resiliency is even apparent in compressed elements as they take the shape of the tool or die they are pressed into and respond to additional stresses (such as in-use loads).
Knitted Wire Mesh Applications
After it is produced, knitted wire mesh can be processed in a number of different ways. For some applications, such as catalytic converter knitted wire mesh supports, flattening mesh to a specific thickness and then crimping it provide a certain amount of spring back and prescribed holding force. For other applications, such as breathers and filters, lengths of knitted wire mesh are pressed into shapes that yield specific densities. Additional finished goods processing include over-knitting (adding an additional layer of knitted wire mesh) and co-knitting (making knitted wire mesh with more than one type of wire).
- Insulation or hot side support material that is flexible, Removable and Reusable to withstand extreme temperatures or corrosive environments
- Insulation or filtration as an alternative to steel wool where loose fibers or fallout is a concern
- Oil Mist Separation, Mist Eliminators or Demister pads for oil & gas, utilities and commercial kitchen exhaust systems
- Sound Attenuation filter in pneumatic tools and vacuum
- Cryogenic gaskets, seals & discs. Automotive exhaust air gap spacers, flex joint seals and air bag filters
- Pre-filter for coarse dust in the heating and ventilation systems. Gas turbine and compressed air inlet / outlet filter
- Engine exhaust muffler packing. EMI / RFI Shielding
Frequently Asked Questions
Are you trading company or manufacturer?
We are manufacturer
To quote, what information is needed?
Raw material, thread diameter, width, quantity, usage, etc.
How long is your delivery time?
It is 7-10 days if the goods are in stock; for mass order, it based on your quantity.
Could you provide free sample?
Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.
What is your terms of payment?
30% T/T as deposit, the balance before shipment. Or 100% L/C at sight. Or 30% deposit, 70% L/C at sight.
How to confirm the quality about your products?
During production, a few samples can be delivered to you for quality confirmation, but the customers need to pay the cost of freight.
How do you make our business long-term and good relationship?
Effective communication
